5.0 Inch TFT LCD
Product Description

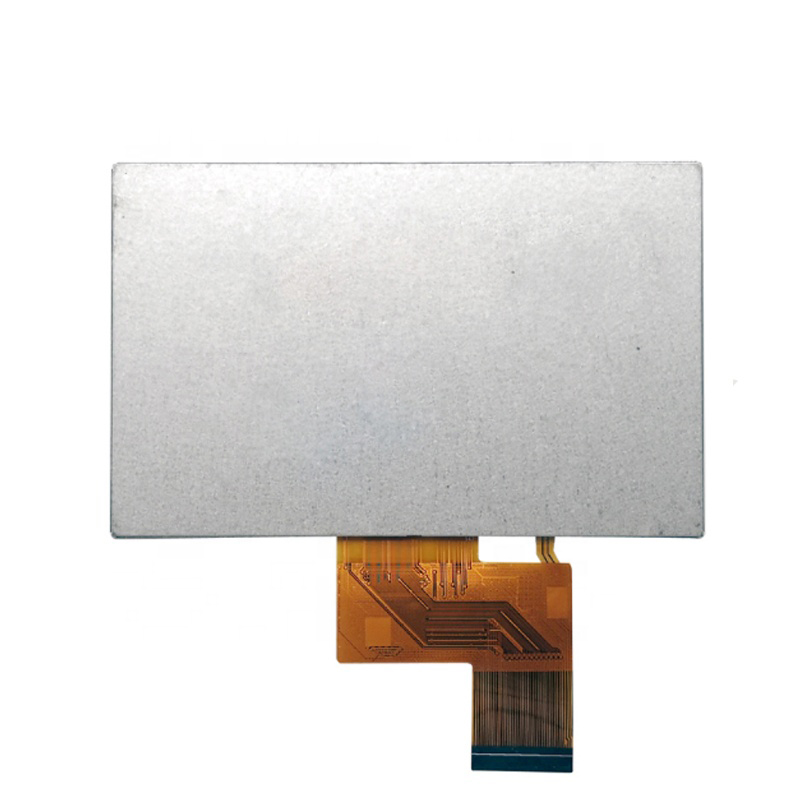

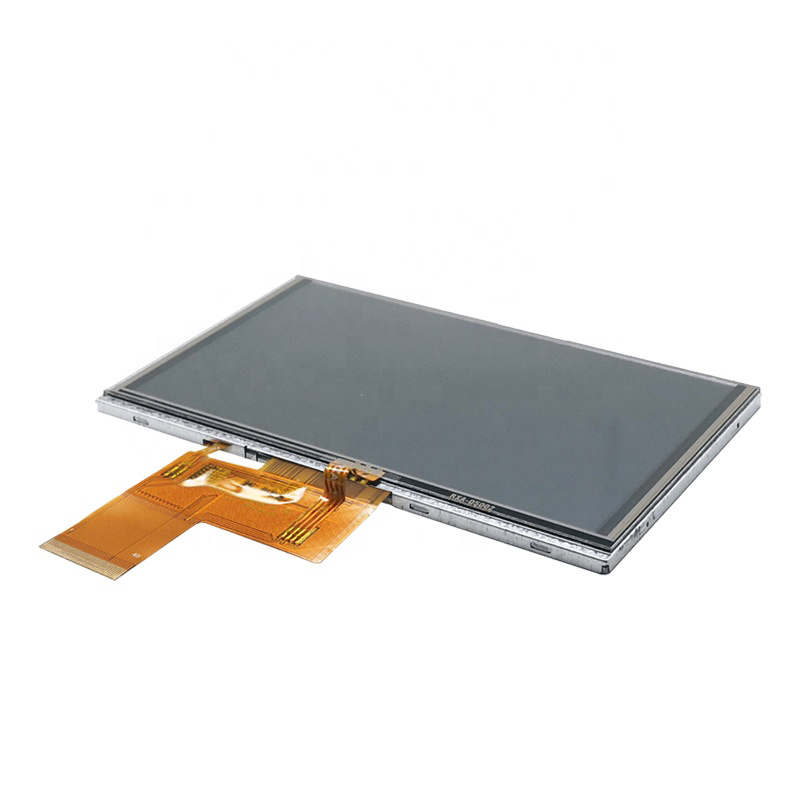

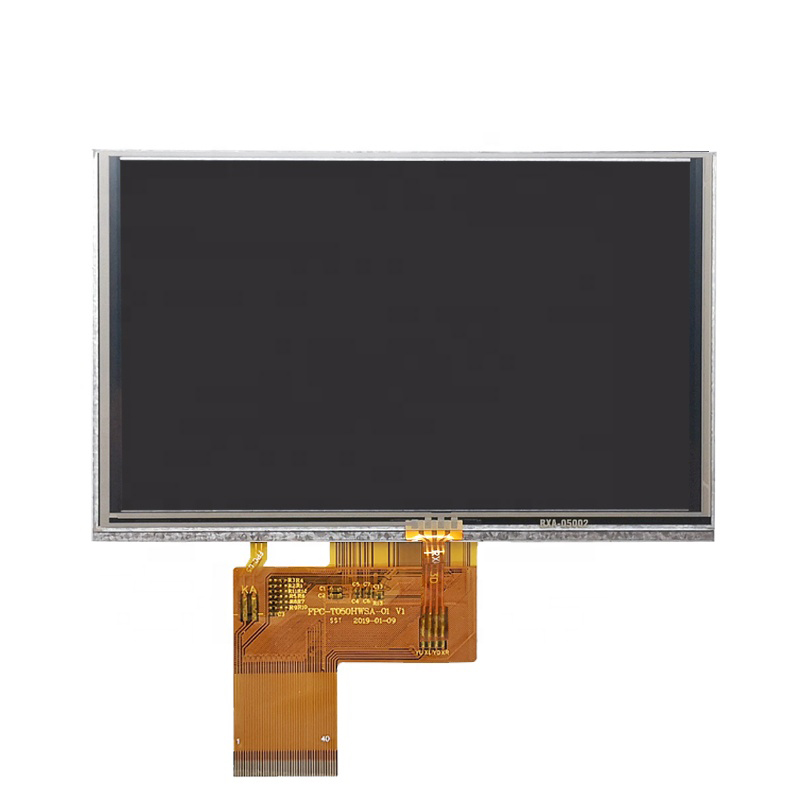

5.0 Inch TFT LCD
Suitable for smart home, industrial instrumentation, e-sports games
product description of 5.0 Inch TFT LCD
Dimensions are 120.7 x 75.8 mm, AA size is 108.0 x 64.80 mm; operating temperature range is –20°C to +70°C; storage temperature range is -30°C to +80°C Resolution 800xRGBx480, full color TFT-LCD Group.
Specifications of 5.0 Inch TFT LCD
|
Contents |
Description |
|
Display outline size |
120.7 mm (H ) x 76.3 mm ( V ) x 3.1 mm ( D ) |
|
VA size |
108.6 mm ( H ) x 64.8 mm ( V ) |
|
Resolution |
800 RGB ( H ) x 480 ( V ) |
|
With /Without Touch screen |
CPT / RTP optional / Without |
|
Interface |
24 − bit RGB Strip |
|
Connector |
0.35Width , 0.5Pitch |
|
Color |
262k Colors |
|
Drive IC |
OTA7001AC , OTA9960A |
FAQ of 5.0 Inch TFT LCD
Q:Are you a manufacturer?
A: We are an LCD manufacturer with 15 years of professional LCD manufacturing experience
Q:Can you provide samples?
A: We can provide samples, but you need to pay the sample fee
Q: How about the delivery time?
A: Generally, it is 15 days, depending on the material and quantity of the product you ordered. We will give you the exact time after placing the order.
Q：Do you accept customization?
A: We can accept custom LCD.
